Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter

Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter
Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter

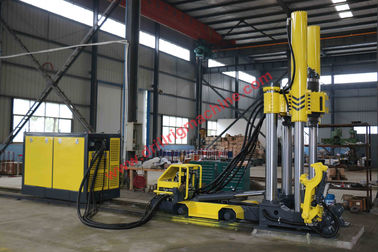

Large Image :  Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter

Product Details:
Place of Origin: China
Brand Name: Sinotechdrill
Certification: SGS & ISO
Model Number: STD-R80
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Nude packing and wooden case available.
Delivery Time: 120 days after receiving deposit.
Payment Terms: L/C,T/T
Supply Ability: 20 PCS per month
Detailed Product Description
Nominol Raise Diameter: 2000mm Max Raise Diameter: 2500mm
Max Raise Depth: 300mm Pilot Hole: 216
Rotation Velocity: 0-45r
High Light:

raise boring drilling

,

raise boring equipment

Lightweight raise drill rig remote control 2500mm maximum raise diameter

Lightweight and compact raise boring rig with remote control 2.5m raise diameter

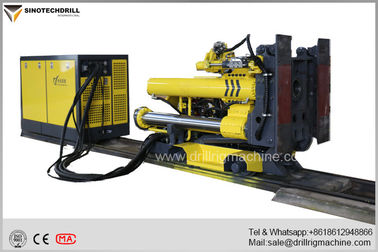

Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter 0



Raise drilling is used to create ventilation shafts as well as shafts through which the mined ore can be passed.Raise boring is the process used in underground mining to create a circular hole between two levels within a mine.

This method and process eliminates the need for explosives. The raise borer machine is placed on the level above the two levels which are going to be the focus of the boring operation. The,once the top level has been broken through and a pilot hole is placed into to upper level of the two levels you are focusing on, a reaming head is used to create the required tunnel in the exact size that is needed.



Sinotechdrill STD-R80 benefit:

STD-R80 rasie boring machine is a low profile and lightweight raiseboring machine for holes ranging from 2.0 to 2.5m in diameter. The rig has been optimized for low ceilings and holes up to 2.5 meters in dimeter. With a height of only 3.16 m, the low-profile raise boring rig designed to provide immense penetrating power in constricted work spaces. Its compact design offers greater maneuverability without sacrificing high torque and thrust. STD-R raise boring machien can be relied on to drill holes with greater power and efficiency.



Compact R80 raise boring machine is a low profile and lightweight raiseboring machine for both civil engineering and mining applications.

It is a small raise boring rig with big power it could offers a sturdy worktable, but with a smaller drilling pad and footprint giving you maneuverability without sacrificing high torque and thrust.

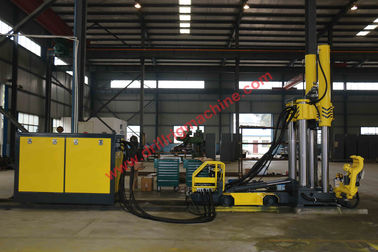

Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter 1

Being able to carry out this heavy duty mining activity, without having to use explosives, is the feature of Raise Boring. Blasting can be incredibly dangerous, it can lack precision and it wastes a huge amount of time. When using the boring method, the mine on which you are working does not have to be evacuated and the procedure can be completed during the shift times. This saves time because the mine does not have to be closed while the raise boring is taking place.

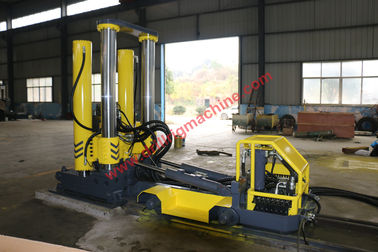

Lightweight And Compact Raise Boring Rig With Remote Control 2.5m Raise Diameter 2

Capacity

  Unit STD-R40 STD-R80
Nominol raise diameter MM 1000 2000
Max raise diamater MM 1500 2500
Max raise depth M 200 300
Pilot hole MM 221 241
Drill angel horizontal ° 60-90 60-90
Feed force KN 1980 1980
Lifting force KN 1980 1980
Feed velocity M/min 5.6 7.7
Feed distance MM 1440 1440
Clockwise torque kN.m 68 110
Anticlockwise torque kN.m 68 110
Rotation velocity R/min 0-24 0-24
Voltage V 380 380
Motor power KW 90 132
Motor rotation speed R/min 1480 1480


If you are interested in our portable drilling rigs or you have exploration in hard-to-access areas, please
do not hesitate to contact us.
