Drilling Depth: | 200m/BTW | Drilling Diameter: | 96,75.7,60mm |
---|---|---|---|
Engine Power: | 23.5kw | Gross Weight: | 564kg |
Max Torque: | 400NM | Rotation Speed: | 1300rpm |
High Light: | rc drill rig,portable core drill rig |
Introduction:

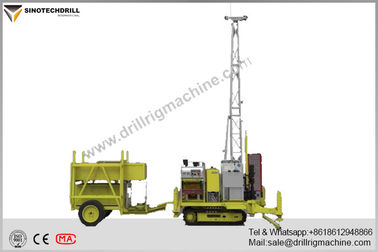

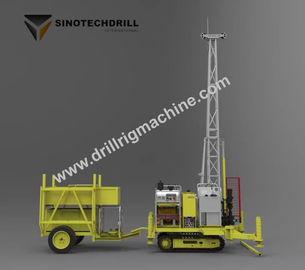

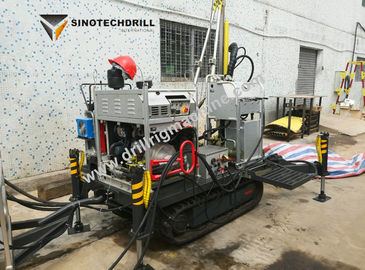

P200C can be used in various engineering investigations. This innovative small fully-hydraulic drill offers multi-configuration combinations. Together with the rope coring and standard penetration printing technology (EGR Operation Method), it can meet various engineering investigation demands. It works particularly well in the hard rock strata, limestone karst strata,broken and pebbled strata where traditional engineering exploration equipment can not reach. When the depth of holes exceeds 50 meters. its average unit per month s 3-5times higher than that of traditional equipment.
Features
1. Powerful tools for engineering exploration, as well as safe and efficient operation with EGR'S original operation method
2. Multi-configuration combination for all working conditions
3. Unique hexagon rail system with high guidance and strong rigidity
4. Stable and reliable highly integrated hydraulic system and comfortable operation
5. Optional servo motor and diesel engine power to meet different operating requirements
Dill depth capacity | HQ/NTE/TW Rod length 1.0m (HQ/NTE/TW) Angel 75°-90° |
30/100/200m |
Hole Diameter | 96/75.7/60mm | |
Core Diameter | 63.5/56/42mm | |
Engine power | KUBOTA 23.5kw/3000rm | |
Top drive rotation head | Maximum torque/rotation speed | 400NM/1300rpm |
Feed travel/Pull/Thrust | 1.27,33KN/24KN | |
Seize and weight | Footprint/Module quantity | 2m*1.5m*5.6m/6PCS |
Heaviest weight module/Gross weight | 176kg/564kg | |
Gripper | Capacity | 108; HTW; NTW;BTW |
winch | Average speed/Pulling force | 70m/min,300kg |
Wire rope diameter/Rope capacity | 6mm/240 |
