Product Details:
Payment & Shipping Terms:
|
| Rock Drill Output Power: | 20kw | Engine: | Cummins，three Stages |
|---|---|---|---|
| Power: | 164kw@2200RPM | Rock Drill Model: | LD120 |
| Hole Diameter: | 76-127mm | Total Weight: | 16200kg |
| High Light: | blast hole drill rig,blast hole drilling machine |
||

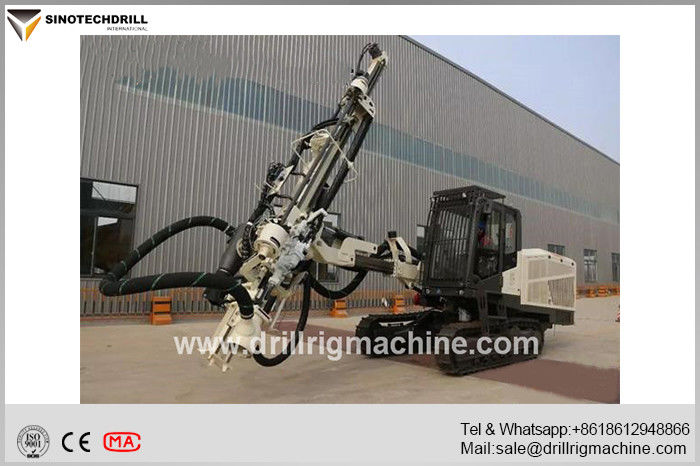

Open Top Hammer and Unique Telescopic Arm Structure DTH Drill Rig Machine
Introduction:
As we all know, the full hydraulic top hammer drilling rig is the cutting-edge technology of the open-pit rock drilling industry. Its remarkable features are high efficiency, low energy consumption, easy operation and high reliability.The structure and system of the open top hammer drill are derived from the classic design of Sandvik, the unique telescopic arm structure, and the vehicle's pitching function. It can cope with various working conditions and has a wide range of drilling. It is a variety of engineering. Ideal for mine construction.
Features:
* High overall efficiency:Sandvik's LD120 rock drilling machine developed for the Sinotechdrill, with high drilling efficiency.
* Low operating costs:Leading drilling control technology to match reliable and durable rock drills, significantly reducing drilling costs,load-sensitive system and air compressor management system can save fuel.
* Easy to maintain
* Safety and environmental protection:good dust collector effect.
Main parameters:
| Total weight | kg | 16200 | |
| Hole diameter | mm | 76-127 | |
| Rock drill model | LD120 | ||
| Rock drill output power | kw | 20 | |
| Rod model | T51 | ||
| Rod length | mm | 3660 | |
| Engine and Power | Cummins164kw@2200RPM,three stages | ||
| Shipping size | length | mm | 6610 |
| width | mm | 2240 | |
| height | mm | 2750 | |
