300m RC Drilling Depth Drill Rig Machine Crawler Drilling Rig Equipment

300m RC Drilling Depth Drill Rig Machine Crawler Drilling Rig Equipment
300m RC Drilling Depth Drill Rig Machine Crawler Drilling Rig Equipment

Large Image :  300m RC Drilling Depth Drill Rig Machine Crawler Drilling Rig Equipment

Product Details:
Place of Origin: China
Brand Name: Sinotechdrill
Certification: CCC&ISO
Model Number: TD-300RC
Payment & Shipping Terms:
Minimum Order Quantity: One Set
Price: Negotiation
Packaging Details: Nude packing
Supply Ability: 20 sets per month
Detailed Product Description
Drilling Diameter: 150-250mm Drilling Depth: 300m
Name: Reverse Circulation Drill Rig Drilling Method: RC Drilling With Air Compressor
Applicaiton: Mineral And Engineering Exploraiton Chassis: Crawler Or Truck Mounted
High Light:

300m Drill Rig Machine

,

RC Crawler Drill Rig Machine

,

300m Crawler Drilling Rig

High Quality TD-300RC Reverse Circulation Drill rig/ Crawler Drilling Rig Equipment



Introduction:

TD-300RC is a crawler-mounted, compact rig specifically designed for reverse circulation drilling at depths down to 250 meters. In order to optimize production, this rugged and easily manoeuvrable rig comes with a rod handler and a positionable magazine that holds up to 30 drill pipes.

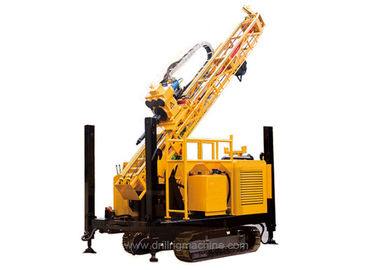

300m RC Drilling Depth Drill Rig Machine Crawler Drilling Rig Equipment 0

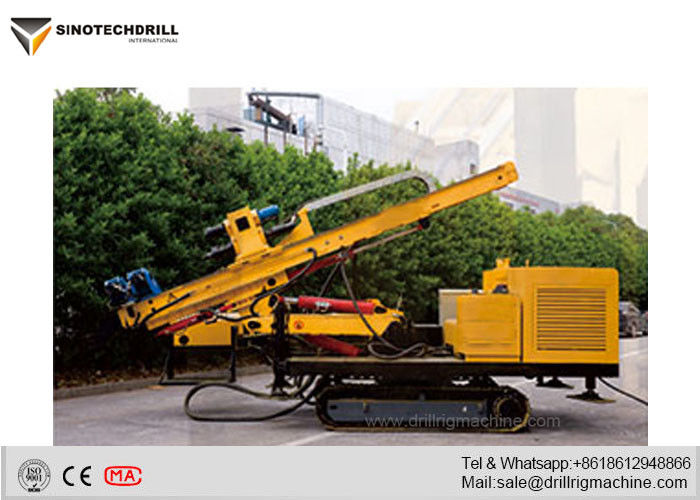

300m RC Drilling Depth Drill Rig Machine Crawler Drilling Rig Equipment 1

Main Parameters:
  TD-300RC
Drilling Diameter 150-250mm
Nominal Drilling Depth 300m
Output Torque 8500N.m
Thrust Force 100Kn
Lifting Capacity 150Kn
Drill Head Rotary Speed 48-190rpm
Drill Head Max Feeding Force 100Kn
Engine Power 125Kw



Features:



* Remote-controlled for safety

The two remote control units offer precise control of the rig at a distance of up to 40 meters, keeping both the operator and helper out of harm's way. Both remote control units are identical and can be used to control the drilling process or the Rod Handling System.

300m RC Drilling Depth Drill Rig Machine Crawler Drilling Rig Equipment 2
