1200m Drilling Depth Mineral Exploration Crawler Core Drill Rig V1

1200m Drilling Depth Mineral Exploration Crawler Core Drill Rig V1
1200m Drilling Depth Mineral Exploration Crawler Core Drill Rig V1

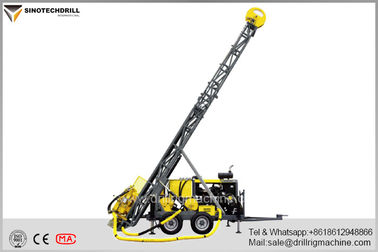

Large Image :  1200m Drilling Depth Mineral Exploration Crawler Core Drill Rig V1

Product Details:
Place of Origin: China Nanjing
Brand Name: EPIROC
Certification: CE & ISO
Model Number: C6
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Nude packing and wooden case available
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5pcs per month
Detailed Product Description
Product Name: Epiroc C6 Diamond Core Drill Rig Application: Ore, Mineral And Geological Exploration Core Drilling
Drill Depth: 1200 NQ Power: 153kw
Max Rod Size: PQ Coring Method: Wireline Core Drilling
High Light:

drilling rig equipment

,

atlas copco drill rigs

Epiroc Diamond Core Drill Rig With 1200m Drilling Depth



Introduction

The Boyles C6/C6C surface core drilling rig is compact and powerful for all ground conditions, terrains and environments. The rig’s safety and ergonomic features provide confidence and assurance with productive drilling, high rate of uptime and minimal maintenance needed.



Features

1. Versatility-Optimized for medium-depth drilling, the Boyles C6/C6C rig makes it possible for you to take on any exploration job.

2. Robust design-Designed for sturdiness and operation in harsh environments, the Boyles C6 rig just goes on and on without interruption, thus minimizing service requirements.

3. Safety-The rig is designed with safety in mind, minimizing the risk of personal injury during operation.



Specifications



Depth Capacity
B wireline 1550m
N wireline 1200m
H wireline 800m
P wireline 500m
Rotation Unit
Max torque 5,113 Nm
Max speed 1,300 rpm
Spindle (inner diameter) 114 mm (4,5 in)
Mast and Feed System
Feed travel 3.5 m (11.5 ft)
Feed speed Fast and slow with variable control
Mast dump 1.7 m (5.57 ft)
Thrust 59.6 kN (13,390 lb)
Pull 138 kN (31020 lb)
Drilling angle 45 to 90 degrees
Rod pull length 6.09 m (20 ft)
Main hoist
Single line capacity 80 kN
Line speed 44m/min
Cable size 27 m x 16 mm
weight 7000kg
