| Product Name: | Surface Core Drill Rig | Drill Capacity: | BQ-3000m NQ-2500m HQ-1500m PQ-1000m |
|---|---|---|---|
| Rotator Capacity: | Max Torque 5010 N•m | Capactiy Of Main Hoist: | Hoisting Force (single/double) 19000 Kg/38000kg |
| Motor Power: | 194kW@2200rpm | Move Style: | Crawler |
| High Light: | drilling rig equipment,underground drilling equipment |
||
Main Features:

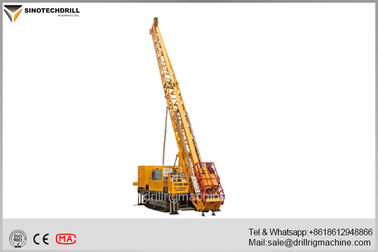

The drilling machine is powered by Cummins diesel engine and equipped with a crawler chassis and features quick construction site transition, compact structure, reasonable layout, hydraulic support leg lifting and simple in-place installation.
The drilling machine is equipped with a three-gear mechanical transmission and adapts to all kinds of strata and multiple drilling construction processes.
The drilling machine has a power head transverse movement function, is convenient to operate, and facilitates tripping operation during drilling.
The drilling machine has self-contained power, is equipped with a hydraulic drive mud pump and a stirrer, and features centralized usage and transportation.
Due to its sliding construction and the grounding of the inclined hole drill tower, the machine features convenient operation, good stability, safety and reliability.
TD-3000 core drill rig technical data
|
|
Item |
TD-3000 |
|
Drilling Capacity |
BQ(55.5mm) |
3000m |
|
NQ(71mm) |
2500m |
|
|
HQ(89mm) |
1500m |
|
|
PQ(114mm) |
1000m |
|
|
Rotator Capacity |
RPM |
15-1000rpm |
|
Max Torque |
5010 N·m |
|
|
Max Feeding Power |
80 kN |
|
|
Max Lifting Power |
220 kN |
|
|
Diameter of Chuck |
94 mm |
|
|
Feed stroke |
3400 mm |
|
|
Capactiy of Main Hoist |
Hoisting Force (single/double) |
19000 kg/38000kg |
|
Main hoist speed (single/double) |
8-36 /4-18m/min |
|
|
Steel Wire Diameter |
22 mm |
|
|
Steel Wire Length (first layer) |
40 m |
|
|
Capacity of wireline Hoist |
Hoisting Force |
1800 kg |
|
Main hoist speed |
30-200m/min |
|
|
Steel Wire Diameter |
6 mm |
|
|
Steel Wire Length |
3000 m |
|
|
Mast |
Mast Height |
11.7 m |
|
Max Load |
60 ton |
|
|
Drilling Angle |
45°- 90° |
|
|
Mast Mode |
Hydraulic |
|
|
Hoisting Height |
9m |
|
|
Engine |
Mode |
6CTA8.3-C260 |
|
Power |
194kW@2200rpm |
|
|
Main Pump Pressure |
28 MPa |
|
|
Chuck Mode |
Hydraulic |
|
|
Foot clamp |
Hydraulic |
|
|
Clamp inner Diameter |
135mm |
|
|
Weight |
11500kg |
|
|
Move style |
Crawler |
|
|
Dimensions (Width×Length×Height) |
2310×6840×3075(2650)mm |
|
