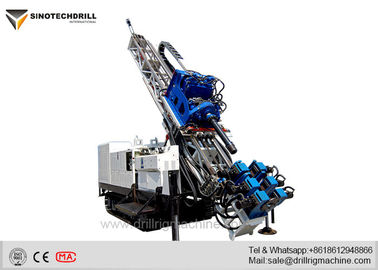

100-200m Depth Hydraulic Sonic Drilling Rig For Geological Investigation

100-200m Depth Hydraulic Sonic Drilling Rig For Geological Investigation
100-200m Depth Hydraulic Sonic Drilling Rig For Geological Investigation 100-200m Depth Hydraulic Sonic Drilling Rig For Geological Investigation

Large Image :  100-200m Depth Hydraulic Sonic Drilling Rig For Geological Investigation

Product Details:
Place of Origin: China
Brand Name: Sinotechdrill
Certification: ISO
Model Number: TD-S200
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Nude packing and wooden case available
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20pcs per month
Detailed Product Description
Product Name: Sonic Drilling Rig Drill Depth: 100-200m
Drill Diameter: 76-168mm Power: 160Kw
High Light:

200m Hydraulic Sonic Drilling Rig

,

100m Hydraulic Sonic Drilling Rig

,

Geological Investigation Sonic Drilling Rig

100-200m Depth Hydraulic Sonic Drilling Rig for Geological investigation



100-200m Depth Hydraulic Sonic Drilling Rig For Geological Investigation 0

















































Heavy drills with high power offering the best performance with wider applications in drilling for deeper and more complex investigations, geological investigations, environmental protection and investigation, a geothermal hole, a study on the gold miners, a dam and tailings monitoring hole, an ocean engineering survey and a water well and etc.

Model   TD-S200
Ability hole depth m 100-200
hole diameter mm 76-168
Drill Angle   0-90°
Drill head Rotary speed rpm 0-52/103
Torque Nm 9300/3900
requency(CPM) 6000
Vibrator force KN 200
weight Kg 1800
Feeding System Pressure KN 50
Pressure speed m/min 11.3; 72
Pulling force KN 75
Pulling speed m/min 7.8; 50
Feeding Stroke mm 3500
Dieselpower Power KW 160
Rotary speed rpm 2200



Working Site

100-200m Depth Hydraulic Sonic Drilling Rig For Geological Investigation 1
