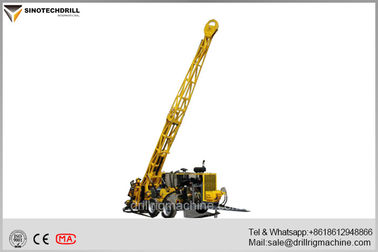

| Product Name: | Epiroc C5 Diamond Core Drill Rig | Application: | Ore, Mineral And Geological Exploration Core Drilling |
|---|---|---|---|
| Drill Depth: | 800 NQ | Power: | 117kw |
| Max Rod Size: | PQ | Chasis: | Wheel / Crawler |
| High Light: | atlas copco drill rigs,underground drilling equipment |
||
Powerful rigs Boyles rigs are powerful and yet easy to operate. They have a feed system that further improves the high productivity that has become a key characteristic of the Boyles rigs.
Ergonomic and user-friendly
The work environment around the rig has been carefully considered during development. All major components are located to allow easy access during maintenance.
High-altitude capability
The rig maintains its strong power at high altitude, without the need for an additional high-altitude kit. The whole hydraulic system is optimized to reduce the effects of low air pressure in high altitude regions.
Atlas copco C5 diamond core drill rig performance:
Depth capacity coring
The below drill depth capacities only serve as guidelines and refer to vertical down drilling. Atlas Copco cannot guarantee that these results can be achieved in all drilling conditions.
B wireline 1000 m
N wireline 800 m
H wireline 500 m
P wireline 300 m
Rotation unit
Power hydraulic motor – variable speed/reversible
Final drive gear driven
Spindle (inner diameter) 117 mm
Max torque 5 393 Nm
Max speed 1 300 rpm
Mast and feed system
Feed travel: 2.0 m
Feed speeds: Fast and slow with variable control
Mast dump: 0.42 m
Thrust: 39.6 kN
Pull: 107 kN
Drilling angle: 45 to 90 degrees
Rod pull length: 6.09 m
Power unit
Manufacturer: Deutz
Model: BF4M1013 Tier ||
Volume: 4.7 liter, 4 cylinders
Power: 117kW
RPM: 2 200 rpm
Engine type: diesel turbocharged, air-to-air charge air cooled
Cooling: water
Electrical system: 24 V
Rod holder
Hydraulically open and close. Easy-to-remove jaws, common jaws from 56 mm to 117 mm
Max diameter: 210 mm
Holding capacity: 13 000 kg (the force can be more greater)
Main hoist
Single line capacity: bare drum 69 kN
Line speed: bare drum 39.7 m/min
Cable size: 35 m x 16 mm
Weight
Complete rig: 5 000 kg
Trido 140 315 kg
