Product Details:
Payment & Shipping Terms:
|
| Depth: | 20m | Hole Diameter: | 46-60mm |
|---|---|---|---|
| Weight: | 140kg | Power: | 13hp |
| High Light: | 20m Portable Drill Rig,13hp Portable Drill Rig,13hp Water Well Drilling Rig |
||

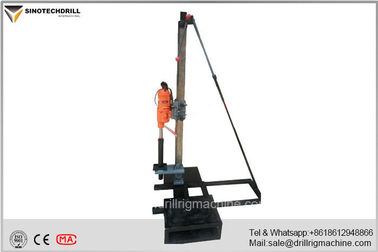

20m depth man portable core drill rig
Use gasoline engine (or diesel engine or electric motor) as pow P20 is a kind of multi-function portable hydraulic drilling rig optimized constantly by us, it use gasoline engine (or diesel engine or electric motor) as power , to achieve the large load change need rely on hydraulic driven gyrator and cylinder pressure adding, reliable running. Choose the diamond alloy or calyx bit based on the actual geological situation.Practice rod as non-stop, high efficiency.
Features:
1. Central handles, simple operation, easy to learn and understand, reliable and practical.
2. Compact structure, small valume, light, easy to disassemble and move, fit in flat and mountain areas.
3. Reliable function, complete coring, flexible operation, fit for field work, improve the efficiency, cut sampling cost, it reaches global advanced level.
Technical Specification
| Drilling type |
diamond and alloy rotary |
| Hole diameter(mm) |
46 60 |
| Drilling depth(m) | ≤20M |
| Spindle rotating speed(r/min) | 400-1000 |
| Power(HP) | 13 |
| Tower | Single frame with tilt brace,1.65m height |
| Feed stroke | 1.2m |
| Total weight (kg) | 140 |
| Max. single weight(Kg) |
75 |
