Product Details:
Payment & Shipping Terms:
|
| Product Name: | HDD Rig | Thrust/Pullback Force: | 380 Kn |
|---|---|---|---|
| Mud Pump Capacity: | 400 L/min | Torque: | 16000 N.m |
| Weight: | 11000 Kg | Power: | 240hp |
| High Light: | horizontal directional drilling rig,directional drilling equipment |
||

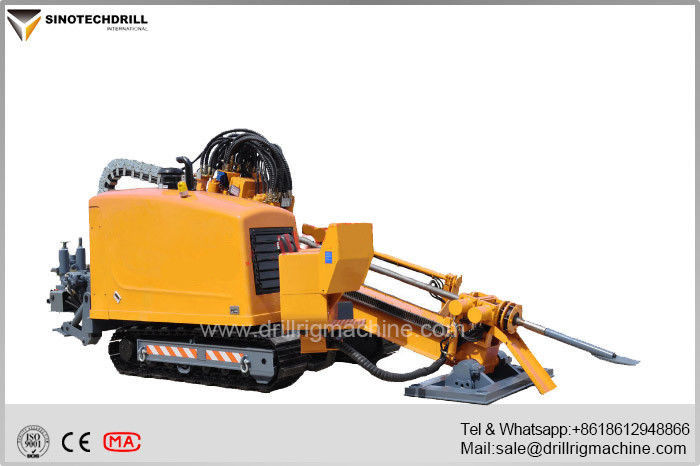

0-200RPM Speed Horizontal Directional Drilling Machine with Maximum torque 16000NM
Features
TD-38 HDD drilling machine adopts high-quality European and American import hydraulic components, Full hydraulic drive, Large power reserve, With a variety of security measures, to make the construction process safer and more reliable.
TD-38 HDD drilling rig is equipped with a rotatable control station, making it more comfortable in operation.
TD-38 HDD drilling rig is mainly used to cross roads, railways, buildings, rivers and the area does not have the excavation condition such like heavy traffic area, conservation area and nature reserve. can lay water, gas, electricity, telecommunications, natural gas and petroleum pipelines.
Specifications
| Diesel Engine | Steyr-Weichai 226B, Turbocharging, Water Cooling |
| Displacement | 6.75L |
| Power | 240 Hp |
| Carriage | |
| Spindle Speed | 0-200RPM |
| Carriage thrust/pullback travel speed | 0-38m/min |
| Thrust/Pullback force | 380Kn |
| Spindle torque | 16000Nm |
| Angle of drilling | 7.5-16 |
| Drilling fluid flow | 400L/min |
| Drilling fluid pressure | 10Mpa |
| Drilling rod | Φ76*3000 |
| Dimension | 6200*2200*2450mm |
| Weight | 11000kg |
Contacts
If you are interested in our portable drilling rigs or you have exploration in hard-to-access areas, please
do not hesitate to contact us.
