Product Details:
Payment & Shipping Terms:
|
| Rated Power: | 194 Kw | Max.pullback/thrusting: | 900/450KN |
|---|---|---|---|
| Push & Pull Speed: | 55m/min | Mud Pump: | 600L\Min |
| Pump Pressure: | 10Mpa | Angle: | 12-20 Degree |
| High Light: | horizontal directional drilling rig,horizontal boring machine |
||

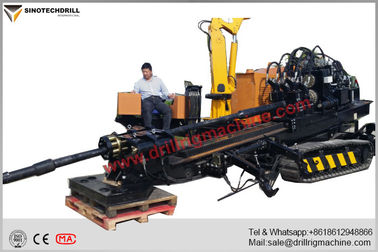

TD450AT - LS 12-20 Degree All Terrain Hdd Equipment Dual Wall Pipe Rock Drilling
Features
1. Germany REXROTH variable and load sensitive controlling main hydraulic system, main hydraulic parts sourced from the world famous supplier.
2. Drive sub rotation enjoys the speed ratio adjust function, drive sub thrust & pulling speed can be flexible at low-speed/medium speed and high speed.
3. Thrust & pulling capacity can be reinforced; the reinforced capacity comes to 900KN.
4. Wire controlling for track walking with low-speed and high speed.
5. Equipped with qualified mud pump with machine.(600L/min)；
6. Four bar linkage luffing structure increasing the drilling angle without rig body leaving the ground level.
7. Steel track plated with rubber can be loaded heavily and walk on all kinds of roads.
8. Rack and pinion thrust & pulling system.
9. Equipped with revertible manipulator loading & unloading system.
10. Standard 114*3000 mm Dual-wall Pipe ,and can choose 127*3000mm or 89*3000mm to meet different condition.
Specifications
| Main technical specification: | |||
| Engine Power | 194kW | Rig Weight | 15000kg |
| Walking Speed | 3-5km/h | Dimension(L×W×H mm) | 8250×2320×2650/3150 |
| Push & Pull capacity | 450KN/900KN | Max psuh & Pull speed | 55m/min |
| Outer drill rod Max torque | 27000Nm | Outer drill rod rotary speed | 95r/min |
| Interior drill rod Max torque | 4600Nm | Interior drill rod rotary speed | 152r/min |
| Max Mud Pump Flow | 600L/min | Mud Pump Max Pressure | 10MPa |
| Drilling Angle | 12-20° | Max Climbing Angle | 18° |
| Max Reaming Diameter | 1300mm(Soil Dependent) | Distance:700m | 700m(Soil Dependent) |
If you are interested in our portable drilling rigs or you have exploration in hard-to-access areas, please
do not hesitate to contact us.
