400 m Depth 3500mm Diameter Raise Boring Machine CY-R80 for Gold , Silver and Copper Mine

large.img.alt
small.img.alt

Large Image :  400 m Depth 3500mm Diameter Raise Boring Machine CY-R80 for Gold , Silver and Copper Mine

Product Details:
Place of Origin: China
Brand Name: Sinotechdrill
Certification: CCC & ISO
Model Number: TDFY150
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Nude packing
Delivery Time: 15days after receiving deposit.
Payment Terms: L/C, T/T
Supply Ability: 50 PCS per month
Detailed Product Description
Warranty: 12 Months Max Raise Depth: 400 M
Usage: Ventilation Shaft/Ventical Shaft Type: Raise Boring Machine
Name: RBM CY-R80 Application: Mining
High Light:

raise boring equipment

,

raise boring rig

400 m Depth 3500mm Diameter Raise Boring Machine CY-R80 for Gold , Silver and Copper Mine​





About CY-R Raise Boring Machine:



The rig drilling machine is a wellbore excavation machinery that uses rotary drilling to break rock into holes and reverse reaming.

CY-R seriCY-R series RBM is a kind of towed equipment for raising in the underground mine, which is a new generation of digital RBM that is able to work in various rockeind of towed equipment for raising in the

uderground mine, which is a new generation of digital RBM that is able to work in various rock.



Function Characteristics



1. Low profile structure with four-poster and two-cylinder

2.RCS2.0 intelligent control system

3 Full-mechanized connecting & breaking out drill pipes system

4 High pressure load sensing hydraulic system

5 Patented technology and high-level configuration

6 Two drilling modes and three operation modes



Detail of Raise Boring Machine CY-R80



Specification CY-R80
Nominal raise diameter (mm) 2000
Max raise diameter (mm) 2500
2nd raise diameter (mm) 3500
Max raise depth (m) 400
Pilot hole (mm) 216/240
Drill angel horizontal (°) 60-90
Feed force (KN) 800
Lifting force (KN) 2200
Feed velocity (M/min) 7.7
Feed distance (mm) 1450
Clockwise torque (KN.m) 70
Anticlockwise torque (KN.m) 95
Rotation velocity (R/min) 0-45
Voltage (V) 380
Motor power (KW) 132
Motor rotation speed (R/min) 1480



Photo Show

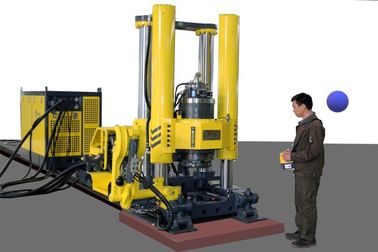

400 m Depth 3500mm Diameter Raise Boring Machine CY-R80  for Gold , Silver and Copper Mine 0

400 m Depth 3500mm Diameter Raise Boring Machine CY-R80  for Gold , Silver and Copper Mine 1
