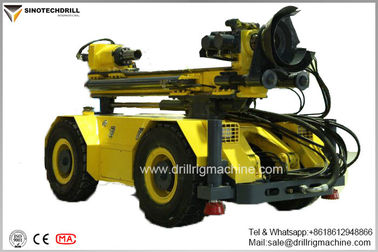

Cy-umd Series Underground Dth Drilling Machine 0.6 - 2.4 Mpa Ac380v 22kw

Cy-umd Series Underground Dth Drilling Machine 0.6 - 2.4 Mpa Ac380v 22kw
Cy-umd Series Underground Dth Drilling Machine 0.6 - 2.4 Mpa Ac380v 22kw Cy-umd Series Underground Dth Drilling Machine 0.6 - 2.4 Mpa Ac380v 22kw

Large Image :  Cy-umd Series Underground Dth Drilling Machine 0.6 - 2.4 Mpa Ac380v 22kw

Product Details:

Place of Origin: China
Brand Name: Sinotechdrill
Certification: ISO,CCC
Model Number: CY-UMD4,CY-UMD4S,CY-UMD6

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Nude packing and wooden case available.
Delivery Time: 120 days after receiving deposit.
Supply Ability: 18 PCS per month
Detailed Product Description
Air Pressure: 0.6~2.4Mpa Maximum Diameter: 105~165mm
Maximum Depth: 100m Drill Angle From Horizonta: -10~99°
Feed Force: 0~80KN Motor Power: 22KW
Lifting Force: 0~80KN Traveling Speed: 4.0/2.5 Km/h
High Light:

raise boring equipment

,

raise boring rig

Description

CY-UMD series underground down-the-hole drilling rig is a summary of the current rig experience, designed for the process needs of China's mines, using advanced electro-hydraulic control technology, program control technology and computer design methods, compact, reliable, durable, efficient and safe. Low cost and harmonious human and machine are the necessary perforating equipment for underground mines in China, especially digital mines.

Standard technical features:

1. Optimized design, the whole machine is compact:

Compared with similar products of other manufacturers, regardless of the walking state or working state, the external dimensions are greatly reduced, and the whole well can be lowered, which is convenient for transition, and can be safely operated in a short stop at 2600 mm.

2. Load sensitive high protection hydraulic system:

The load-sensitive hydraulic pump and the load-sensitive electromagnetic proportional valve of well-known manufacturers are selected, the control is independent of the load, the proportion is good, and there is no overflow and no heat. The oil absorption, pipeline, oil return and oil drainage multi-stage filtration isolation, the system is not easy to pollute, and the hydraulic components work more reliably.

3. Program-controlled operating system based on CANBUS bus technology:

The advanced program-controlled operating system ensures that the rig is efficient and reliable, and automatically adapts to different working conditions. It has intelligent control functions such as stuck drill warning, open hole decompression, docking rod floating, and drill rod guiding.

Model H max(mm)
CY-UMD4 3060
CY-UMD4S 2560
CY-UMD6 3060
CY-UMD6S 2560

4. Multi-directional damping turret with its own patented technology:

The flexible connection between the turret and the drill pipe can effectively isolate the impact of the impactor and the rotational vibration to the rig, thereby improving the reliability of the rig.

5. New dust-trapping hood with its own patented technology:

The low flow resistance design, the two-stage sealing structure, the new structure of the cover elastic pressing and the like prevent the dross from being sprayed to the drilling machine, which greatly improves the life of each moving part.

6.No wear propulsion rail:

The guide rail covers the replaceable wear strip, the sliding pair adopts organic wear-resistant material, and the guide rail is used without wear and relief.

7.Plug-in independent drive walking wheel:

The wheels are modular in design and the four wheel assemblies are quick to remove for easy access to the tank.

8. Remote remote control operation or wireless remote control operation.

Cy-umd Series Underground Dth Drilling Machine 0.6 - 2.4 Mpa Ac380v 22kw 0

Parameters CY-UMD4 CY-UMD4S CY-UMD6 CY-UMD6S
Model (Standard) (Short) (Standard) (Short)
Air pressure MPa 0.6~2.4 0.6~2.4 0.6~2.4 0.6~2.4
Maximum diameter mm 76~ 127 76~127 105~165 105~165
Maximum diameter m 100 100 100 100
Weight kg 4800 4600 5000 4800
Feed force kN 0~80
Feed distance mm 1660 1160 1660 1160
Speed m/min 0~12 0~20
Clockwise torque N.m 0~3300 0~3900
Anticlockwise torque N.m 0~4900 0~5100
Rotation velocity r/min 0~53 0~55
Voltage V AC380
Motor power KW 18.5 22
Motor rotation velocity KW 1470



Optional configuration technical features:

1.Dual-powered diesel power unit: It can travel long distances and has convenient transition.

2. automatic retractable cable reel: efficient, safe and convenient operation.

3. automatic leveling module: automatically achieve the level of the whole machine.

4. Rock drilling automatic recorder: Automatically record the main operating parameters in the rock drilling operation. A histogram of rock changes with depth in the hole is automatically drawn.

5.Data communication module: Upload the main working parameters and production report of the drilling rig to the mine production management system through the U disk or mine communication system.

6.Wireless remote control module: can choose the appropriate safe operating position according to the stope environment and the field of view.

Cy-umd Series Underground Dth Drilling Machine 0.6 - 2.4 Mpa Ac380v 22kw 1
