Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m

Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m
Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m

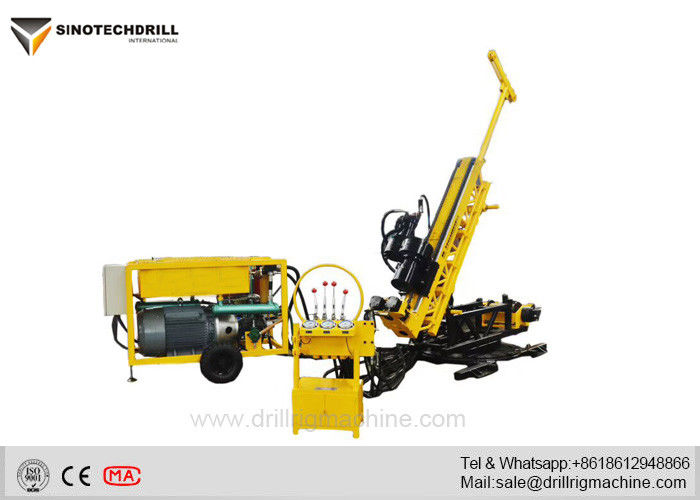

Large Image :  Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m

Product Details:

Place of Origin: China
Brand Name: Sinotechdrill
Certification: BV & ISO
Model Number: UD1000

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Nude packing and wooden case available.
Delivery Time: 40 days after receiving deposit.
Payment Terms: L/C,T/T
Supply Ability: 20 PCS per month
Detailed Product Description
Product: Underground Drill Rig Drill Depth: HQ600m, NQ850m, BQ1050m
Rated Pressure Of Main Pump: 31.5Mpa Chassis Engine: 75Kw
High Light:

atlas copco drill rigs

,

underground drilling equipment

Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m

Introduction:



UD1000 full-hydraulic underground drilling rig is widely used for underground mineral exploration.

Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m 0



Main Features:



1. Power engine. Power engine is mounted with a small dolly and it is easy to relocate. Here are powerful motor, transmission, double hydraulic pump (main pump is for rotation and auxiliary pump is for cylinder) and so on.

Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m 1



2. Main machine body. It consists of beam, rotation, holder, cylinder etc. It is convenient to assemble or disassemble. It could achieve 0-360 degree drilling.

Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m 2

Drilling Depth Hole diameter Rod diameter Rod Material
600 95 89(HQ) Steel
850 75 71(NQ) Steel
1050 59 55.5(BQ) Steel

Specifications:

Rotation speed ≥1200rpm
Hydraulic working pressure 23Mpa
Max. Pressure 28Mpa
Torque ≥1450Nm
Pushing force >85Kn
Pulling force >160Kn
Stroke 1600mm
Drilling angle 0-360 degree
Electric motor power 75Kw
Rated pressure of main pump 31.5Mpa
Rated pressure of auxiliary pump 20Mpa
Dimension

Main machine body:2650*620*1650mm

Power engine:1790*1100*1420mm

Operation panel:700*450*1150mm

Weight 2000kg(main machine body 1300kg; power engine 1080kg; operation panel 80kg)



Working Site

Full Hydraulic Underground Core Drill Rig with Drilling Depth NQ850m 3
