Portable Drilling Rigs , Hydraulic Underground Drilling Equipment Light Weight

Portable Drilling Rigs , Hydraulic Underground Drilling Equipment Light Weight
Portable Drilling Rigs , Hydraulic Underground Drilling Equipment Light Weight Portable Drilling Rigs , Hydraulic Underground Drilling Equipment Light Weight Portable Drilling Rigs , Hydraulic Underground Drilling Equipment Light Weight Portable Drilling Rigs , Hydraulic Underground Drilling Equipment Light Weight

Large Image :  Portable Drilling Rigs , Hydraulic Underground Drilling Equipment Light Weight

Product Details:
Place of Origin: China
Brand Name: Sinotechdrill
Certification: ISO
Model Number: TD-F600
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Nude packing and wooden case available
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5pcs per month
Detailed Product Description
Product Name: Portable Core Drill Rig Application: Ore, Mineral And Geological Exploration Core Drilling
Drill Depth: 600m(BTW)/400m(NTW) Power: 32HP*3 Kobuta Engine
Max Rod Size: HTW Max Weight: 160KG
Weight: 1350KG Max Torque(Nm): 700Nm
High Light:

atlas copco drill rigs

,

underground drilling equipment

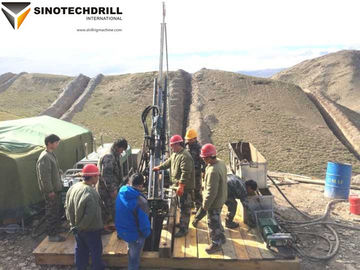

Manportable hydraulic core drill rig with light weight BTW-600m



General Introduction

This drill is modular design and made of high-strength aluminum materials, which ensure high standards of toughness while greatly reduce the weight of rig. The max component weighs 160kg, which is convenient for human transportation.

The drill’s compact structures make sure that it can be assembled within the 4mx4m platform and dismantled easily in the field. With optimized designing, the F600 drill can be disassembled in 45mins and re-positioned in a half shift.

When road-access is limited, the drill can be handled along the small trails by manpower. This gives the drill outstanding advantages in a variety of complex terrain conditions.



FEATURES:

  • The high-level of flexibility and productivity has made this type of drills efficient for applications in many mountainous regions in Africa, Asia, South America, Central America, the Mid East, and the Caribbean.



  • The drill adopts energy-saving and noise-reduction techniques. It is not only allows the operator to feel comfortable, but also can reduce the interference on the surrounding environment. F600 drilling rig can be easily handled by manpower and no roads will be needed. As footprints traces are limited and restoration of the environment is relatively simple, the influence on the natural environment is very small.



  • With TW series of thin-wall drill rods, the F600 drill can give full performance to the advantages offering increased drilling efficiency, larger core diameters, and higher recovery rate.



  • The drill head is compact, top-drive and lightweight design. With the use of high and low speed hydraulic motors, the head is suitable for variable drilling conditions and reliable to deal with different torque need.



  • The Rod holderis bidirectional hydraulic drive, fast clamping response, light weight and flexible.



  • The Water swivel compact design, coaxial jet offering high wear resistant and smooth operation.



Manportable drill rig specification
1 Depth capacity (Depth is based on vertical hole) BTW .......................................................... 600m
NTW........................................................... 400m
HTW ......................................................... 220m
2 Feed frame Weight........................................................ 318 kg (heaviest unit: 160kg)
LxWxH (work state)................................. 2743x502x5283 mm
Pull force................................................... 55 kN
Rod size range......................................... Ø54mm - Ø114mm
3 Power unit Power......................................................... Kubota 1105T Engine 3x32hp
Weight........................................................ 159 kg/unit
LxWxH....................................................... 876x610x940 mm
4 Control panel Weight........................................................ 82kg
LxWxH....................................................... 508x762x1063 mm
Gauges……………………………………hydraulic system pressure, rod clamping pressure, bit pressure
Hydraulic functions................................. feed, rotation, clamping, wireline and water flow
5 Hydraulic reservoir Capacity.................................................... 45l, water cooling, single return line filter
Weight........................................................ 144 kg (empty), 181kg (full)
LxWxH....................................................... 876x559x940 mm
6 Wireline winch Weight........................................................ 61kg (empty), 98 kg (full)
LxWxH....................................................... 660x406x365 mm
7 Rod holder Hydraulic pump....................................... Triplex Plunger, 69 bar
Weight........................................................ 59 kg
LxWxH....................................................... 914x533x286 mm
8 Mud pump (optional) Power......................................................... Triplex Plunger hydraulic pump
Flow and pressure................................... 80 lpm, 69 bar
Weight........................................................ 59 kg
LxWxH....................................................... 914x553x286 mm
9 Water supply (optional) Power......................................................... Kohler diesel, 7.3 KW
Flow and Pressure.................................. 102 lpm, 60 bar
Weight........................................................ 100 kg
LxWxH....................................................... 914x553x679 mm





Competitive Advantage:

Assembled in China, which used top brand hydraulic unit . These ensure the stable performance and make main spare parts available all over the world.
