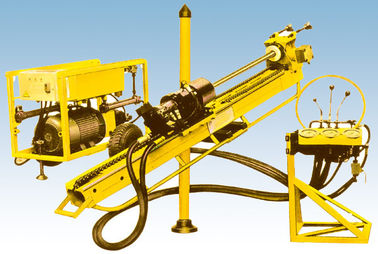

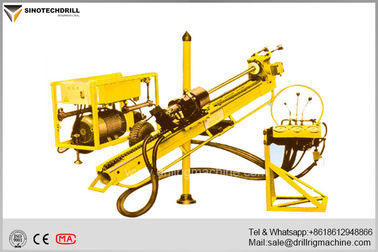

Electric Hydraulic Underground Core Drill Rig High Penetration Light Weight UDZ7559 ISO9001

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Electric Hydraulic Underground Core Drill Rig High Penetration Light Weight UDZ7559 ISO9001

Product Details:
Place of Origin: China
Brand Name: Sinotechdrill
Certification: ISO9001
Model Number: UDZ7559
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Nude packing & Wooden case available
Delivery Time: 30 days after payment
Payment Terms: D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 SET per Month
Detailed Product Description
Product Name: Underground Drill Rig Usage: Ore, Mineral And Geological Exploration Core Drilling
Power Type: Electric Weight: 1700KG
Warranty: Half A Year Drill Rig Capacity: BQ-450m /NQ-350m /HQ-250m
After-sales Service Provided: Engineersavailable To Service Machinery Overseas Type: Full Hydraulic Operation Poartable Drill Rig
High Light:

atlas copco drill rigs


underground drilling equipment

1. Lower labour intensity,high work efficiency
2. Light in weight,small in size
3. Easy to repair


Backed up by a team with strong technical strength and equipped with a number of modern processing ,inspection and testing machinery ,the company has successfully developed series of All-hydraulic Drilling Machine which used for the mine of lean resource and peripheral prospecting underground without tower. They can also used for the upper prospecting. Operators drill with lower labour intensity and high work efficiency because of the rig light in weight, small in size and easy to repair and handle. The drilling diameter is between AQ to HQ and drilling depth can up to 600,400,300,100m. The performance of which proved to be up to the world level of its kind. Also it has filled a gap in China .


With a set business goal of “Striving to manufacture the first-class products, taking a leading position in China in the same line of its own, trying to catch up with and surpass the advanced world level”, the company has invested a great deal in technological innovation. Efforts have also been made to further improve its foreign exchange and cooperation. As a result, the comprehensive capability of the company has been greatly enhanced, making its products more competitive. In recent years, products under the brand of “Space Navigation” sell well on domestic market and have been exported to more than 10 countries and regions in the world.

Spindle rotational frequency 600-1800r/min Spindle toque 480Nm
Axial pushing force >35KN Axial pulling force >27KN
Hydraulic system working pressure 20Mpa Maximum pressure 25Mpa
Underground drilling angle 0°-360° Azimuth angle 0°-360°
Inclination of the earth's surface 45°-90°
Electric motor power 45KW Electric motor frequency 1480rpm
The maximum pressure of the main pump 31.5Mpa Auxiliray pump 31.5Mpa
size(mm) machine body:2370×300×500 power unit:1550×110×1210
control pannel:550×450×1150
Weight 1700kg(machine body:380kg power unit:800kg control pannel:150kg)
Power head stroke 1500mm


drilling depth(m) drilling hole diameter(mm) rod diameter(mm) rod material
250 75 71 steel
350 59 55.5 steel
450 46 43 aluminium
