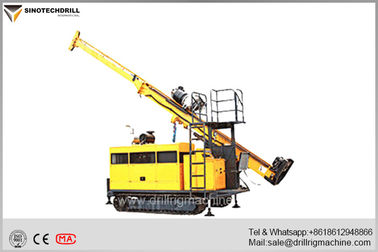

Product Name: Full Hydraulic Diamond Core Drilling Rig With Crawler Chasis Drill Capacity: BQ-1000m NQ-700m HQ-500m
Rotator Capacity: 4200 N·m(3098 Lbf·ft) Capactiy Of Main Hoist: Hoisting Force (single/double) 19000 Kg/38000kg
Motor Power: 132Kw (180HP) Move Style: Crawler
High Light:

atlas copco drill rigs

,

underground drilling equipment

Compact Crawler Drill Rig , Hydraulic Core Drilling Machine With BQ Drill Depth 1000m



Specifications

HYDX-4 rig is simple and compact in structure, easy for transportation and with BQ drill depth 1000m.

1. Products

HYDX-4 core drill rig could substitute expensive famous products.

It could be applied to exploration and prospecting of mineral, geology, metallurgy, coal, petroleum,

natural gas, groundwater and other industries.
The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world.

Main Parameters



Diesel Engine Model Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)
Displacement 5.9L (1.56 US Gallons)
Power 132Kw (180HP)
Rated RPM
(Factory setting)
2200rpm
Drilling Capacity BQ 1000m(3280feet)
NQ 700m(2296 feet)
HQ 500m(1640 feet)
Drill Head Rotation Motor Hydraulic Motor-variableMaker: SAUER-DANFOSS
RPM Four Shifts/ Stepless Change 0-1100 RPM
Ratios 1st 14.422:1
2nd 8.171:1
3rd 4.519:1
4th 2.652:1
Head Opener Pivoting style, Manual actuated
Hydraulic Chuck(PQ) Hydraulically opened, Disc Spring Clamping, Normally C Closed Type
Axial Holding Capacity of 222400N
Max. Torque 4200 N·m(3098 lbf·ft)
Hold Diameter 98 mm(3.86 inch)
Max. Lifting capacity of Spindle 150 kN(33720 lbf)
Max. Feeding Power 60 kN(13480 lbf)
Primary Pump Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.With load sensing system. Maker: DANFOSS
1st Pump:148LPM at 31.5MPa
2nd Pump:120LPM at 28MPa
3rd Pump:50 LPM at 16MPa
Hydraulic Tank Capacity 310 L (82 US Gallons)
Capacity of Main Hoist Hoisting force (single wire) 57kN(12814 lbf) (bare drum)
Hoisting Speed (single wire) 38-70m/min(bare drum)
Steel Wire Diameter 16 mm(0.63 inch)
Steel Wire Length 50 m(164 feet)
Capacity of Wireline Hoist Hoisting Force (single wire) 1200 Kg(2646 lb) (bare drum)
Hoisting Speed (single wire) 60-90m/min (bare drum)
Steel Wire Diameter 6 mm(0.236 inch)
Steel Wire Length 1000 m(3280 feet)
Mast Mast Height 11 m(36.09 feet)
Mast Adjusting Angle 0°—90°
Drilling Angle 45º off horizontal to 90ºvertical down
Feed Pull 15000kg(33075 lb)
Feed Thrust 6000kg(13230 lb)
Rod Pull 3m or 6m(9.84feet or 19.68feet)
Feeding Stroke 3500 mm(137.80 inch)
Slippage Stroke 600 mm(23.62 inch)
Mud Pump Type Reciprocating pump Triplex Plunger
Model BW160/10
Stroke 70mm(2.76 inch)
Discharge pressure 2.5, 4.0, 6.5, 10.0 Mpa
(363, 580, 943, 1450 psi)
Foot Clamp Clamping Scope 55.5-110 mm(2.19-4.33 inch) through hole dia.154mm(6.06 inch)
Others Weight (platform type) 9300 Kg(20506 lb)
Dimensions (L×W×H) 5100×2200×2890mm(200×86.6×113.78 inch)
Transport Way Crawler
