|Size:||BQ NQ HQ PQ||Length:||1.5 Meter, 3 Meter, Or As Per Request|
|Application:||Mineral Exploration Wireline Core Drilling Tools||Process:||Heated Treatment|
|Standard:||DCDMA||Material:||High Quality Steel|

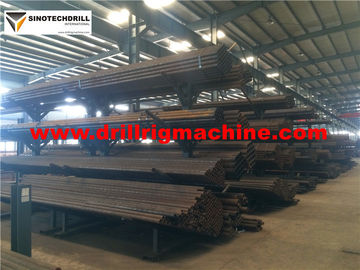

HQ Wireline core drill rods for mineral exploration with DCDMA standard
1. Available in all standard drilling sizes (A, B, N, H and P).
2. Heat treated and anti-rust coating process
3. High straightness and concentricity
4. “Q” series and “TW” (Thin Wall) series,1.5m and 3m length.
Sinotechdrill only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.
Heat treatment control
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.
Size Available as followings:
"Q" series: AQ, BQ, NQ, HQ, PQ,
“TW” series: ATW, BTW, NTW, HTW
Casing: AW, BW, NW, HW, HWT, PW
|HQ drill rod|
|Rod OD/ID||114.3/101.6 mm|
|Rod length||1.5 m 3 m|
|Rod weight||17.3 Kg/m|
|1.5m rod weight||26 Kg|
|3m rod weight||52 Kg|
|HQ drill rod thread numbers|
|Thread length||63.5 mm|
|Thread pitch||2.5 threads/inch|
|Thread tooth height||box thread: 1.17 mm|
|pin thread: 1.27mm|
|Thread tooth angle||29°|
Qualification & Certification
Packing & delivery
Q: What's your delivery time?
A: Commonly produce need 20 days to produce. Within 3 days if in stock.
Q: What methods of payment are accepted?
A: We agree T/T, L/C, West Union, One touch, Money Gram
Q: What about the shipment?
A: Based on order quantity and the length of drill rods. We can send it to you by Express, by Air, by Sea, and by Train. Or send the goods to your chinese agent.
Q: How to control the quality?
A: We should be checking & testing everyone drill rod before shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Does your drill rod have heat treatment?
A: Yes, the heat treatment for our drill rods and casing pipes.
Q: Does your drill rod have rust prevention?
A: Yes, every one drill rod and casing pipe will be with the rust prevention by paint or anticorrosive oil before shipping. If you need galvanized pipes pls contact us the price.
Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will be compensate you the same. Any question or problem we will be reply you within 24 hours.
