Product Details:
Payment & Shipping Terms:
|
| Size: | BQ NQ HQ PQ | Length: | 1.5 Meter, 3 Meter, Or As Per Request |
|---|---|---|---|
| Application: | Mineral Exploration Wireline Core Drilling Tools | Process: | Heated Treatment |
| Standard: | DCDMA | Material: | High Quality Steel |
| High Light: | machining drill rod,tool steel drill rod |
||

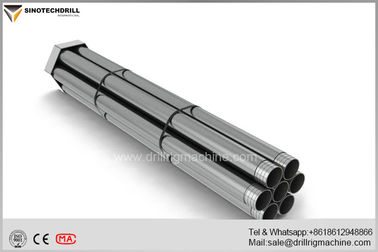

PQ Wireline core drill rods for mineral exploration with DCDMA standard
Specifications
1. High quality alloy tube
2. Thru-wall heat treated tube body
3. Consistent concentricity, straightness
4. Tapered threads
Reliable material and advanced technology
We supply wire line core rods, all offering advanced quality and adopting top-level industrial technology standard in raw material and production process. Drill rods and casing rods are quality-crafted in DCDMA standard sizes using superior alloy steel, with each end of the rods heat-treated for greater wear resistance.
Heat treatment control
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.
Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.
Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
Size Available as followings:
"Q" series: AQ, BQ, NQ, HQ, PQ,
“TW” series: ATW, BTW, NTW, HTW
Casing: AW, BW, NW, HW, HWT, PW
|
Bundle details |
Number of rods | Length | Width | Height | Weight |
| Drill rod, B | 104 | 1.55 m | 0.63m | 0.45m | 752kg |
| 3.05m | 1500kg | ||||
| Drill rod, N | 60 | 1.55 m | 0.71m | 0.43m | 708kg |
| 3.05m | 1420kg | ||||
| Drill rod, H | 40 | 1.55 m | 0.73m | 0.45m | 690kg |
| 3.05m | 1380kg | ||||
| Drill rod, P | 30 | 1.55 m | 0.69m | 0.58m | 780kg |
| 3.05m | 1557kg |

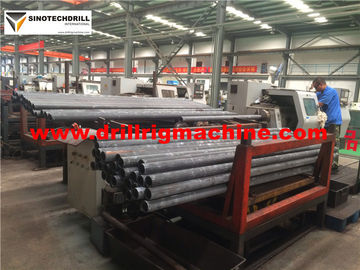

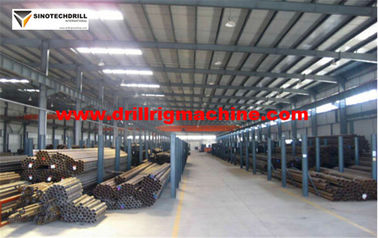

Our factory
Qualification & Certification
Packing & delivery
FAQ
Q: What's your delivery time?
A: Commonly produce need 20 days to produce. Within 3 days if in stock.
Q: What methods of payment are accepted?
A: We agree T/T, L/C, West Union, One touch, Money Gram
Q: What about the shipment?
A: Based on order quantity and the length of drill rods. We can send it to you by Express, by Air, by Sea, and by Train. Or send the goods to your chinese agent.
Q: How to control the quality?
A: We should be checking & testing everyone drill rod before shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Does your drill rod have heat treatment?
A: Yes, the heat treatment for our drill rods and casing pipes.
Q: Does your drill rod have rust prevention?
A: Yes, every one drill rod and casing pipe will be with the rust prevention by paint or anticorrosive oil before shipping. If you need galvanized pipes pls contact us the price.
Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will be compensate you the same. Any question or problem we will be reply you within 24 hours.
