Product Details:
Payment & Shipping Terms:
|
| Product Name: | Portable Core Drill Rig | Application: | Ore, Mineral And Geological Exploration Core Drilling |
|---|---|---|---|
| Drill Depth: | 100m | Power: | 22-37 (36-60HP) |
| Max Rod Size: | 75 | Max Weight: | 120kg |
| Weight: | 350KG | Drilling Type: | Diamond And Alloy Rotary And Twist Spiral Drilling |
| High Light: | rc drill rig,portable core drill rig |
||

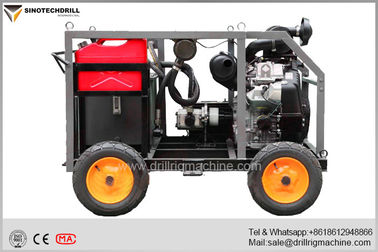

Portable drill rig for geological survey sampling and mapping max weight 120kg
Main Feature:
1.Electrical motor, diesel engine
2.Suitable for normal drilling rod coring and wire-line coring
3.Modularity designed, portable, easy to assembling and disassembling, convinient to move
4.Easy to learn and operate, practical and reliable
Brief Introduction:
TD-100 is designed as modularity and has features like light weight, small size, quite convenient to use in the fields. For drilling work, TD-100 can drill in 0-90 degree angle with diamond bit, spiral twist bits, alloy bit etc. In China, TD-100 is the most advanced portable drilling rig which can drill inclined borehole.
Main application:
Widely used in geological survey sampling and mapping, seis hole construction, geochemical rock sampling, road foundation exploration and geotechnical engineering etc.
| Technical parameter: | |
| Drilling type | diamond and alloy rotary and twist spiral drilling |
| Hole diameter(mm) | 42-75 |
| Drilling depth(m) | ≤150M |
| Spindle rotating speed(r/min) | 120-1500 |
| Power(KW) | 22-37 (36-60HP) |
| Tower | Single frame with tilt brace,3.7m height |
| Feed stroke | 1.5m |
| Total weight (kg) | 350 |
| Max. single weight(Kg) | 120 (hydraulic pack) |
