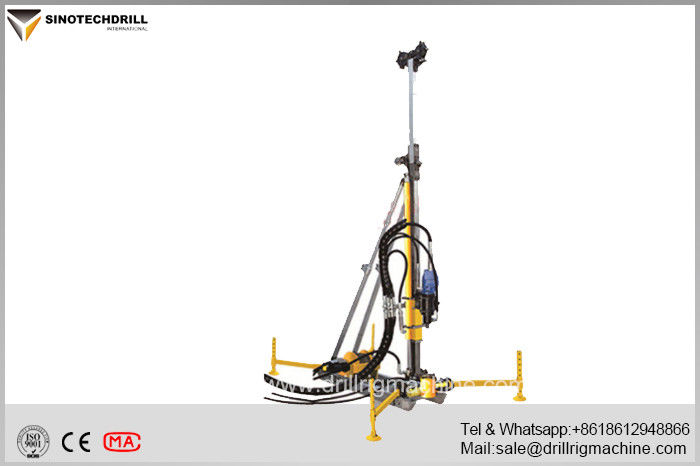

200m Man Lightweight Portable Drill Rig Wireline Drilling Machine

200m Man Lightweight Portable Drill Rig Wireline Drilling Machine
200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 200m Man Lightweight Portable Drill Rig Wireline Drilling Machine

Large Image :  200m Man Lightweight Portable Drill Rig Wireline Drilling Machine

Product Details:
Place of Origin: Shandong Province, China
Brand Name: Sinotechdrill
Certification: CCC & ISO9001
Model Number: P200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude for best price sinotruk howo 6*4 dump truck,howo tipper truck,howo truck for sale.
Delivery Time: 30 days after receiving 30% deposit.
Payment Terms: L/C,T/T
Supply Ability: 30 units per month
Detailed Product Description
Depth: 200m Core: 42mm
Total Weight: 513Kg Power: Kubota 23.5kw
High Light:

200m Portable Drill Rig

,

23.5kw Portable Drill Rig

,

200m Wireline Drilling Machine

                                          200m depth man portable core drill rig machine

P200 portable drilling rig has been widely used in mineral exploration, infrastructure construction

(i.e. railway, road and bridge, etc.),hydraulic and hydropower project, tunnel exploration and

geographical investigation. It works particularly well in areas with complex geographic characteristics

such as mountainous regions, forests and plateaus.It is the ideal drilling rig when operating in

hard to access areas within a depth of 200 meters, executing small projects,conducting initial

investigations and working on tight schedules.

200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 0

Key Characteristics

1.Lightweight

Modulized design with the heaviest module weighing only 180kg, able to be carried by only four persons.

Masts rig with the capacity of drilling from an angle of 45 to 90 degree. No tower is needed.

Lightweight machine with 80% of the framework being made of high-strength aluminum alloy materials.

2.Fast

Fast transportation-No need for road and infrastructure construction.

Fast relocation-Only 2 hours required for the next hole.

Fast penetration-3 times higher than vertical rig with a maximum daily penetration of 150 meters and an

average daily penetration of 70 meters.

3.Reliable

All key parts are from the global leading brands, powerful, stable and reliable.

Integrated hydraulic system with no worries of leakage and malfunction.

Unique mud system and special mud materials to increase drilling efficiency and reduce accidents.

200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 1

Capacity

Drill depth capacity

HQ/NTW/BTW

Rod length 1m

(HQ/NTW/BTW)

30/100/200m
Hole Diameter 96/75.7/60mm
Core Diameter 63.5/56/42mm
Engine power Japan KUBOTA 23.5kw/3000rpm
Hydraulic system Maximum pressure 21Mpa/max Maximum flow 54L/min Water cooled

Top drive rotation head

Maximum toque 400NM
Maximum rotation speed 1300rpm
Feed travel (Cylinder drive) 1.27m
Pull/thrust 33KN/24KN

Winch

Average speed 150m/min
Lift 600kg
Were Diameter/Accommodation 5mm/240m

Mast

5m;Height
Drill Angle 45°-90°

Size and weight

Platform area/Module quantity 3m X 3m / 4PCS
Heaviest module/Gross 176kg /513kg



200m Man Lightweight Portable Drill Rig Wireline Drilling Machine 2
