Depth: | 50m | Hole: | 46-75mm |
---|---|---|---|
Power: | 27hp | Pressure: | 40mpa |
Feed Stroke: | 1.2m | Weight: | 250kg |
Highlight: | 50m Portable Core Drill Rig,Lightweight Portable Core Drill Rig,50m Water Well Drill Machine |

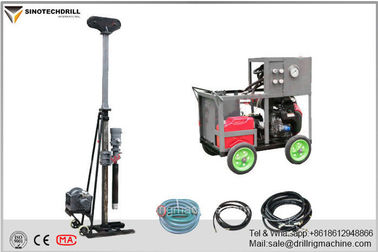

50m drilling depth portable core drill rig lightweight water well drill machine
P50 series Portable Drilling Rig is well- designed and improved drilling rig, referred to advanced drilling rigs of domestic and abroad, which is more suitable for the using in all kinds of complex conditions. It is equipped with gasoline engine and diesel engine as power and the operations such as rotary and cylinder pressure with hydraulic pack, which is quite reliable for operation.
Features

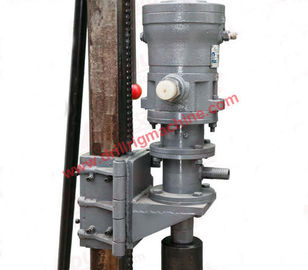

For drilling work, P50 can drill with diamond bit, spiral twist bits, alloy bit etc. And it can achieve no-stop reversing, which has high efficiency. P50 is light weight, small size, easy to assembling and disassembling, quite convenient to use in plain and mountainous area. With a butterfly spring pressing type output shaft, it can protect the power transmission and inside gear, which is fully achieved the most advanced level of China.
Technical Parameters
Drilling type | diamond and alloy rotary and twist spiral drilling |
Hole diameter(mm) | 46 60 75 |
Drilling depth(m) | ≤35M |
Spindle rotating speed(r/min) | 200,500,1000(3-gear transmission ) |
Power(HP) | 20 |
Tower | Single frame with tilt brace,1.65m height |
Feed stroke | 1.2m |
Total weight (kg) | 220 |
Max. single weight(Kg) | 80 |
