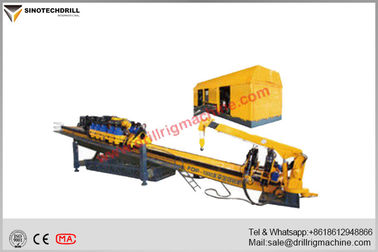

990 T High Capacity HDD Horizontal Directional Drilling Machine 8-16 Degree Angle

990 T High Capacity HDD Horizontal Directional Drilling Machine 8-16 Degree Angle
990 T High Capacity HDD Horizontal Directional Drilling Machine 8-16 Degree Angle

Large Image :  990 T High Capacity HDD Horizontal Directional Drilling Machine 8-16 Degree Angle

Product Details:
Place of Origin: China
Brand Name: Sinotechdrill
Certification: CE & ISO
Model Number: FDP-1000
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Nude packing
Delivery Time: 30 days after receiving deposit.
Payment Terms: L/C,T/T
Supply Ability: 20 PCS per month
Detailed Product Description
Rated Power: 94×4 Kw Max.pullback/thrusting: 990ton
Spindle Torque: 190000Nm Engine: Volvo
Crane: 6T Angle: 8-16 Degree
High Light:

directional drilling equipment

,

horizontal boring machine



990 T High Capacity HDD Horizontal Directional Drilling Machine 8-16 Degree Angle



The HDD drill rig is short for horizontal directional drilling rig, and the other name trenchless directional drilling rig. HDD Drill rig made in Huanghai Factory is an automotive travel drilling rig by means of rubber crawler. It is powered by hydraulic pressure. It is designed by advanced technology and has a simple and convenient structure. Besides, the drilling dig has a stable performance, high efficiency and low oil temperature.
Its main hydraulic component, motor and mud pump are domestic famous brands. As for the main machine, it is equipped with rubber crawler, which is solid and anti-wear. Thanks to the rubber crawler, the HDD drill rig, or horizontal directional drilling rig can work in the urban area. It can also move from the standard trailer by itself. This ensures the HDD drilling rig can move around easily in the drill site. This also ensures that the trenchless directional drilling rig can work within the possible drilling angle.

990 T High Capacity HDD Horizontal Directional Drilling Machine 8-16 Degree Angle 0

Feeding (traveling)
Rated feeding / pulling capacity 990T
Max. feeding / pulling capacity 1045T
Feeding / pulling system rack and pinion
Traveling driven by ten gears, 4 shifts stepless adjustable 36 m/min 1st shift: 36 m/min
18 m/min 2nd shift: 18 m/min
17 m/min 3rd shift: 17 m/min
8.5 m/min 4th shift: 8.5 m/min
Rotation
Rotating system gear transmission, stepless adjustable
I shift torque 190000Nm @50r/min
II shift torque 95000Nm @100r/min
Power
Manufacturer Volvo, Sweden
Ratings 394×4 kw/2100r/min
Running state

Feeding / pulling and rotating could achieve the max,

performance parameters above.

Power for main machine Ratings 145KW/2100r/min could be chosen by client's
Hydraulic system

Close type system for feeding, pulling and rotating, open type load-sensing system for auxiliary circuit.

Chassis

1. Platform type, with hydraulic cylinders

2. On crawlers with traveling speed 1.5Km/h.

Crane
6T straight arm crane
Drill rod
The length of drill rod should be within 10.5 meter.
Shackles
Adjustable distance, accurate and reliable screwing-off, automatic centering
max. screwing on torque 210000Nm
max. Screwing off torque 420000Nm
Drilling angle 8°~ 16°
Accessory
Pressure, flow rate, rotating speed etc. could be seen in operation cabin for easier analysis while drilling.



If you are interested in our portable drilling rigs or you have exploration in hard-to-access areas, please
do not hesitate to contact us.
