Product Name: | Blast Hole Drill Rig | Drill Rod Diameter: | 83mm |
---|---|---|---|
Drill Rod Length: | 4m×6 | Hole Depth, Max: | 24m |
Highlight: | blast hole drilling machine,dth boring machine |

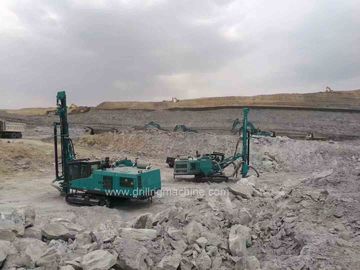

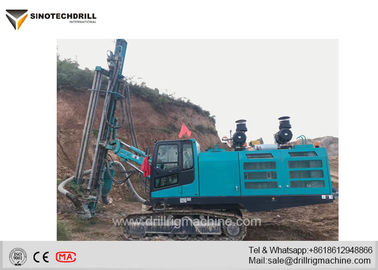

High Torque Blast Hole Drill Rig/ Down-the-hole Drill with Air Compressor
Introduction:
Highly efficient, environmentally friendly and reliable
*The availability of different power units such as the internal combustion. electricity. and diesel-power power makes them suitable for different mines, and minimizes the power consumption.
*The company offers both heavy-duty drilling derricks that are suitable for the mining of large mines and multidirectional arm type structures that are suitable for use on slopes and various engineering works
*The four-point hydraulic telescopic leg chassis or floating chassis leveling allows for excellent adaptability to the ground.
*The two-stage dry dedusting system or the high-pressure mist dedusting system, and the unique anti-thrusting mechanism effectively reduce dust and maintain a clean working environment.
Advanced and reliable control system
*The adaptive control technology for rock drilling and the rotation pressure auto EHC feed effectively protects the rig from jamming: and the interlock of the drilling operation with the hydraulic pilot control for adjusting and traveling operations ensures safe and reliable operation.
Advanced and intelligent technology and the CANBUS technology, high reliability embedded engineering machinery controller and true color LED display, highly integrated electronic control system independently developed by the company, and the integrated instrument display for hydraulic system and air compressor system operating parameters are used in the control system.
Excellent operational performance
The cab provides the operators with a safe operating environment that allows for good vision and offers an integrated design of electrical control buttons and a hydraulic handle, which are carefully arranged.
Easy maintenance
The modular design, compact structure, and the proper arrangement allow for easy maintenance.
Optional configuration
Accurate angle detecting that enables the drilling at special angels, intelligent dilling depth display, accumulation and hard rocks.
Main parameters:
SWDE120A | |
Drilling range | 90~138 mm |
Impactor | 3.5",4.5",5" |
Drill rod diameter | 83mm |
Drill rod length | 4m×6 |
Hole depth, max | 24m |
Dust collection device | Dry (standard) / Wet (optional) |
Air compressor | |
Manufacturer | SULLAIR |
Model | DLQ550RH |
Working pressure | 1.7MPa |
Displacement | 15.5m³/min |
Power | 179kW/1800rpm |
Engine | |
Manufacturer | Cummins |
Model | QSB4.5 |
Power | 82kW/2200rpm |
Fuel tank capacity | 530L |
Feed | |
Feed beam length | 8000mm |
Feed stroke | 4380mm |
Feed extension | 1200mm |
Feed rate, max | 0.8m/s |
Feed force, max | 32kN |
Forward tilting angle | 140° |
Overturning angle | -20°~90° |
Boom | |
Full length | 2800mm |
Lifting angle | 50°~-30° |
Oscillating angle | 15°(L) / 45°(R) |
Travel capability | |
Traveling speed | 3.2km/h |
Traction force, max | 100kN |
Gradeability | 25° |
Track tilt angle | ±10° |
Ground clearance | 480mm |
Rotary | |
Rotary speed | 70rpm |
Rotary torque | 3000N.m |
Diamension | |
Gross weight | 15.5t |
Working(L×W×H) | 8.2×3.62×8 m |
Transportation(L×W×H) | 9.8×3.1×3.5 m |
