Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines

Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines
Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines

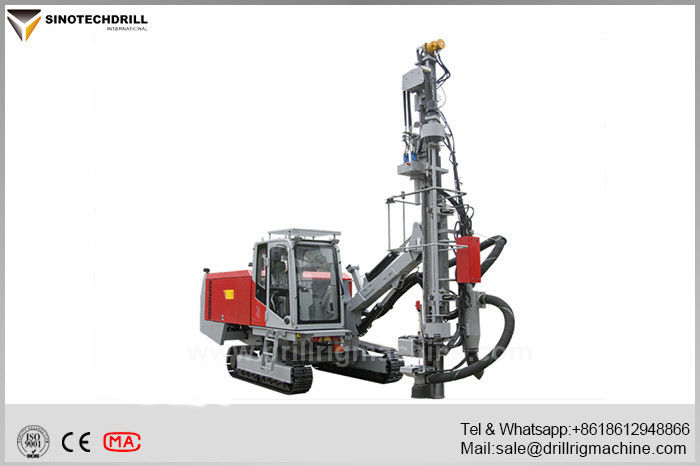

Large Image :  Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines

Product Details:

Place of Origin: China
Brand Name: Sinotechdrill
Certification: ISO
Model Number: TDB7

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Nude packing
Delivery Time: 25 Days after Receiving Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 PCs per month
Detailed Product Description
Drill Depth: 21 M Drill Diameter: 90 - 135 Mm
Diesel Engine: Cummins QSC8.9-C360 Power: 264 KW / 2200rpm
Air Compressor: 18bar Travelling Speed: 1.8 Km/h 3.6 Km/h
High Light:

blast hole drilling machine

,

dth boring machine

Hydraulic Direct Control System DTH Drill Rig for Quarries and Limestone Mines



Introduction:



The B7 is an economical and practical drilling rig with reliable performance and low maintenance costs. Suitable for quarries and limestone mines, for aperture range: 90 - 130 mm.



In addition to intuitive hydraulic control, the rig's cab, automatic shifting system and dust collection system provide operators with a safe and comfortable operating environment that increases overall efficiency.



The rig adopts hydraulic direct control system, which is extremely easy to operate and maintain, and the number of components is effectively controlled, thereby greatly reducing the failure rate of the equipment and effectively improving the high reliability and maintenance convenience of the equipment.



Main parameters:



Hole range Method Down the hole
Diameter 90 - 135 mm
Rod 76 x 3000 mm
Drill Depth 21 m
Rod Qty 6 + 1
Diesel engine Model Cummins QSC8.9-C360
Power 264 kW / 2200rpm
Torque 1480 N.m /1400 rpm
Temperature -20℃ - 50℃
Emission Euro III
Air compressor Model Screw type
Max Pressure 18bar
Flow 258l/s
Travelling Speed 1.8 km/h 3.6 km/h
Grability 20°
Ground clearance 470 mm
Traction 100 KN
Amplitude ±10°
Thrust beam Stroke 3330 mm
Max. Pull 18 KN
Max. Push 1000 mm
Rotation head Model A7 - 140
Torque 2000 N.m
Max speed 110 rpm
Dimension and weight Dimension 9200x2500x3200 mm
Weight 14500 kg
Dust-collection Device D45 - 140
Filter area 14 m²
Filter qty 14
Drill arm Arm pitching Under 28°/up 33°
Arm left/right Left25°/right25°
Carriage angle left23°/right92°
Horizontal hole height 800 - 3700 mm
DTH Hammer 3’’ hammer 90 - 135 mm
4’’ hammer 110 - 135 mm

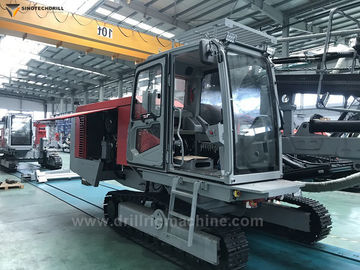

Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines 0

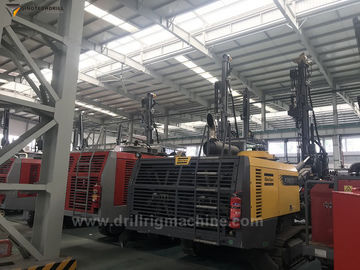

Hydraulic Direct Control System DTH Drilling Machine For Quarries / Limestone Mines 1
