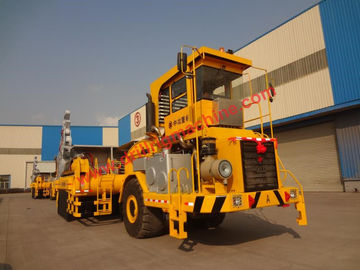

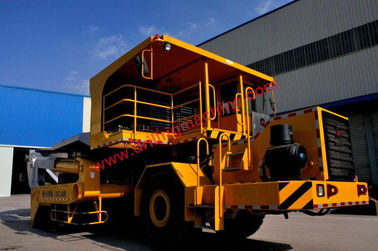

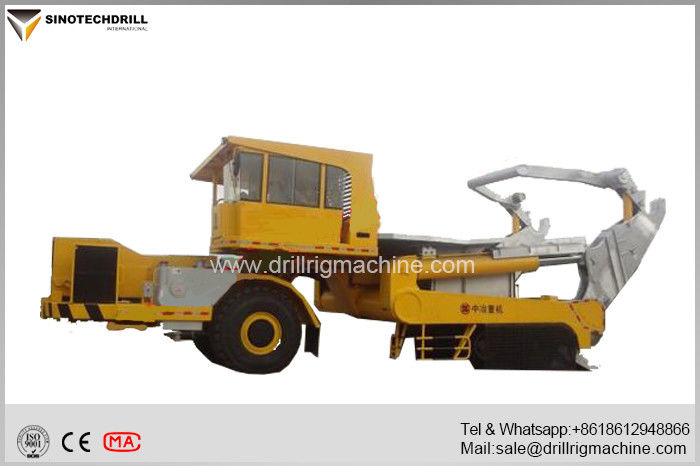

35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting

35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting
35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting 35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting 35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting

Large Image :  35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting

Product Details:
Place of Origin: Shandong Province, China
Brand Name: Tengda
Certification: CCC & ISO
Model Number: BGC-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 90 days after receiving 50% deposit.
Payment Terms: L/C,T/T
Supply Ability: 10 units
Detailed Product Description
Type: Slag Pot Carrier Capacity: Customized
Engine: Cummins Dimension: 11000×5800×4700mm
Engine Power: 400Hp Loading Time: ≈20S
High Light:

mining prospecting equipment

,

electronic water level sensor

75000Kg Slag Pot Carrier

Product Description

This series of products has integrated operating capacity of self- loading, unloading, transporting, overturning. According to the structural features, the Slag Pot Carrier can be divided into integral type, articulated type, dragged type and combined type, wherein the articulated type is further divided into types A/B/C and U-frame. The loading capacity of the product series: customized from 35-120Ton.

35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting 0
Specifications
Length*Width*Height 11000×5800×4700mm
Dead-weight About39,000kg
Capacity 75,000Kg
Max. Unloading Speed 30km/h
Max. Loading Speed 20km/h
Max. Climb Capability 8%
Turning Radius ≈8500
Steering Angle ±60°
Maximum Ground Specific Pressure 0.75MPa
Engine Power 400Hp
Working Press of Hydraulic System 23MPa
Loading Time ≈20S
Tipping Time ≈50S
35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting 1
Features

The Slag Pot Carrier was used to transport Steel Slag and Non-ferrous metal Slag, it can automatically load, tilt, unload and transport the slag pots. It can integrate remote control system and auto-weighting system. The max speed with full load is 17 KM/h.

1.Advanced technology, reasonable structure, reliable performance;

2.Controllable production process and reliable product quality;

3.Professional after-sale service team.

35ton 120ton Slag Pot Carrier Professional For Loading Unloading Transporting 2
