Large Portable Rotary Screw Air Compressor 7-25 bar Working Pressure 328 - 753 l/s Air Flow

Name: Large Portable Rotary Screw Air Compressor 7-25 bar Working Pressure 328 - 753 l/s Air Flow
Brand: Atlas copco
SKU: X(A,R)(M,T,H,V)S 336-746
Rating: 5 (123 reviews)

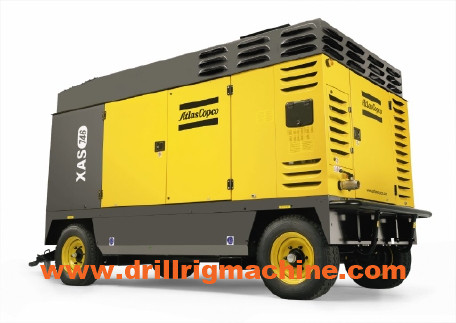

Large Image : Large Portable Rotary Screw Air Compressor 7-25 bar Working Pressure 328 - 753 l/s Air Flow

Product Details:

Place of Origin:	China
Brand Name:	Atlas copco
Certification:	ISO & CE
Model Number:	X(A,R)(M,T,H,V)S 336-746

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Based on Detailed Order
Packaging Details:	Wooden case or in bulk
Delivery Time:	Based on Detailed Order
Supply Ability:	50 pcs / month

Contact Now

Detailed Product Description

Working Pressure:	7 - 25 Bar	Air Flow (FAD):	328 - 753 L/s
Engine:	Caterpillar	Brand:	Atlas Copco
After-sales Service Provided:	Engineers Available To Service	Weight:	5580 - 6150 Kg
High Light:	oil free air compressor , reciprocating piston air compressor

Large portable air compressor range 19,7-45,2m³/min (695-1600cfm): 7-25bar

Atlas Copco’s X(A,R)(M,T,H,V)S 336-746 portable air compressors meet your needs for high volume air at medium pressure. Booster manufacturers find them invaluable as source air compressors and they have become indispensable machines for rental companies. Powered by reliable Caterpillar diesel engines, this large compressor range are suitable for all your demanding applications such as heavy-duty drilling, quarrying, shallow water well drilling, deep-hole drilling and large diameter pipeline cleaning. All models are available in versions that meet the latest exhaust emission and noise directive criteria.

Customer benefits

Save on transport and stocking costs thanks to minimum footprint.
Best fuel consumption in class.
Low Total Cost of Ownership – You can achieve even lower fuel consumption with the addition of the innovative FuelXpert™ system, which electronically regulates engine speed and the air inlet valve to optimize fuel consumption.
Safe for your operators – Safety features include pressure displays, emergency stop and spillage-free frame.
Highly versatile – Ideal for use in all weather conditions and in temperatures between -25°C/-13°F and +50°C/+122°F. With certain models you can adjust the working pressure between 7-10.3 bar (100-150 psig) to suit your specific application. Special versions for working at higher altitudes are also available.
Outstanding durability – Components last longer thanks to Oiltronix™, the electronically controlled oil temperature system, which extends the lifetime of air-ends, compressor components, oil and oil-separator. In addition, it prevents overheating and increases safety.
High fuel autonomy – The high capacity fuel tank (up to 708 liters) allows Size 2 compressors to work in remote areas without the need to refuel.

Technical Specifications
Normal effective working pressure	7 - 25 bar
Air flow (FAD)	328 - 753 l/s
Air flow (FAD)	19.7 - 45.2 m³/min
Sound power level	100 dB(A)
Engine	Caterpillar
Weight	5580 - 6150 kg
Length	490 - 565 cm
Width	210 - 215 cm
Height	248 - 250 cm

Large Portable Rotary Screw Air Compressor 7-25 bar Working Pressure 328 - 753 l/s Air Flow 0

Our Services:

Quality control system.
After-sale service.
Brand new & not used.
Product drawing and design.
24 hours service.
